Graphic Overlay For PLC Based Digital System

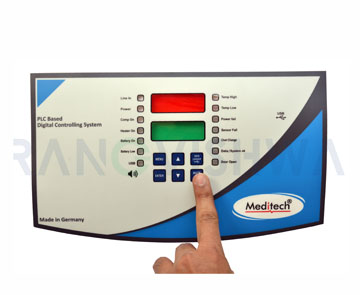

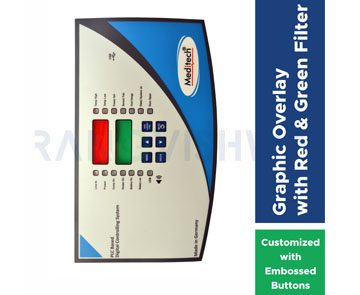

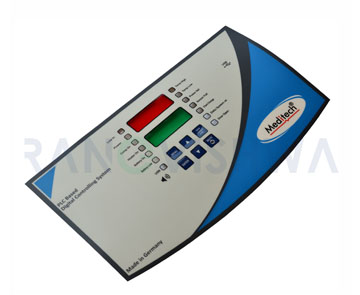

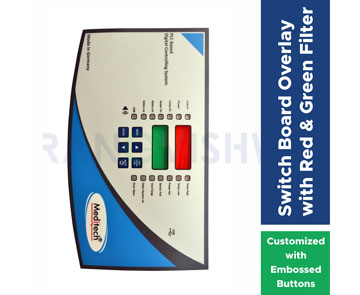

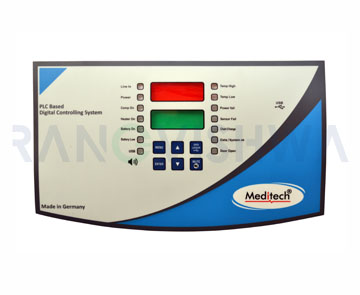

Graphic Overlay with Red & Green filter display area used for PLC Based digital controlling system equipment, consisting of :

• Specific RED & GREEN filter semi transparent area for LCD display.
• Embossed button along with transparent [clear] area for coloured LED.
• For achieving this shape & cut outs, we have to make specific die tool, which will be based on drawing or shapes provided by our customer.
• Surface of overlay is matt finish but glossy effect provided for LOGO only.

Material Used for this overlay :

Few advantages of using Graphic Overlays :

• A Graphic Overlay / front fascia makes a powerful first impression of your company’s product / instrument / equipment.
• The graphic overlay is the first thing users see when they interact with equipment.
• It is an interface that connects the user to the machine, device or equipment.
• Graphic Overlay is also the outermost layer of the membrane switch assembly
• Graphically defining the locations of the LED, switches / buttons, displays areas for LED & LCD and explaining the operation of the equipment.
• An eye catchy Graphic Overlay increase the face value of the product & your Brand

Options available for Graphic Overlay :

• Customized Front Overlay layout.
• Graphics printed by screen printing or digital printing method as per customers need.
• Optional embossing for Logo, buttons & LED area.
• Surface finishing available: Glossy/Matt/Textured/Metal finish/Fine finish.
• Graphic overlays can be printed with a virtually unlimited range of colons.
• Laser cutting & die cutting for accuracy to meet drawing perfection.
Because most graphic overlay materials are transparent, the ability incorporate back lighting and display components is possible.
• ROHS compliance raw material.

Graphic Overlay For PLC Based Digital System.
