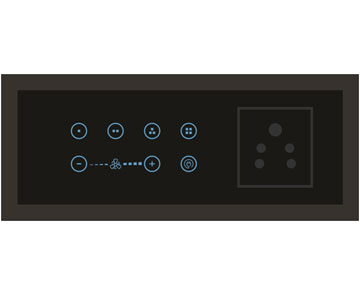

Capacitive Touch Membrane Switch have the following features :

  • • Customized graphic overlay printed with advanced screen printing technology.
  • • No metal contact; simple structure.
  • • Operation comfort; well feeling & very good sensitivity.
  • • Backlighting option provided.

Layer of Capacitive Touch Keypad Consist of :

  • • Graphic Overlay
  • • Graphic adhesive.
  • • 1.6 mm PCB
  • • Rear Adhesive.

Material used for Capacitive Touch Keypad :

  • • Graphic overlay – Autotext F-150 coated polyester film
  • • Overlay back adhesive – 3M 467 make.
  • • 1.6 mm glass epoxy PCB.
  • • 3M 467 back adhesive

Advantages of Capacitive Touch Keypad :

  • • Sleek Appearance.
  • • Robustness and Durability.
  • • Ease of Maintenance.
  • • Flexibility in Customization.
  • • Light Touch Activation.
  • • Scroll and Slider Designs options available.
  • • Multi Touch Capability.
  • • Backlighting Options

Design Option available for Capacitive Touch Keypad :

  • • Customized front overlay material like Coated Polyester films, PC films, PC sheets, Glass, Acrylic etc.
  • • Various kind of finishing available for overlay like matt, glossy, antiglare or selective area textured.
  • • Backlit option available.
  • • ROHS Compliant.
